In this article we'll cover:
- Why is a patent family necessary?
- Simple Patent Family
- Extended Patent Family
- How are these Families related?
- Different Types of Patent Family Members
- Accessing List, Geography & Tree map
- What do the ticks on the Patent Family page mean?
Why is a patent family necessary?
Since patents must be applied for at a national level rather than at an international level, it means that a single invention is often associated with numerous identical patents around the world.
For this reason, the idea of a patent family was introduced so that patent analysts can rapidly identify patents that relate to a single invention around the world.
A patent family is a collection of patent applications covering the same or similar technical content.
In other words, it is “the same invention disclosed by a common inventor(s) and patented in more than one country.” Patent families can be regarded as a “fortuitous by-product of the concept of priorities for patent applications”.
According to the Paris Convention, inventors have one year after filing their initial patent in one country to file for the same invention in other countries. They must claim “priority” from that original patent in order to ensure that no invention filed by anyone else in that year can be taken as prior art when assessing patentability. It is also possible that a patent may claim priority to more than one document because this patent may be describing multiple similar ideas which can't be all referenced from one previous document.
Also working their way into the definition of a family are different “versions” of documents, such as revisions and amendments to an application, or reissues of granted documents.
Finally, it’s worth noting that there is no such thing as an official definition of a patent family:
"Patent families are defined by databases, not by national or international laws, and family members for a particular invention can vary from database to database." – Edlyn Simmons
That said, let’s look at what definitions PatSnap has used for the different types of family…
Simple Patent Family
A simple patent family is a collection of patent documents that are considered to cover a single invention. The technical content covered by the applications in one simple patent family is identical.
In other words, if you’re looking for a group of patents that cover the same invention, look at simple families.
Patent applications that are members of one simple patent family will all have the same priorities.
Continuations and divisionals are considered to cover the same technical content as the parent application. Continuations and divisionals will always be in a patent family with the parent application, regardless of the priorities that they claim.
PatSnap uses the DOCDB definition of Simple Families and consolidates this data directly from the EPO.
If all the priorities of two documents are the same, they are referred to as "equivalents". This is the definition used in PatSnap under “Also published as”.
Note – this rule is good for most situations, but an exception can be when an additional WIPO application is claimed as priority.
Extended Patent Family
An extended patent family is a collection of patent documents that cover a technology. The technical content covered by the applications in one extended patent family is similar but not necessarily the same.
Patent applications that are members of an extended patent family will all have at least one priority in common with at least one of the other members – either directly or indirectly.
In PatSnap, you'll find two types of Extended Family:
INPADOC Extended Family
We keep the INPADOC extended patent family the same as OPS (EPO Open Patent Services).
In PatSnap, the INPADOC extended patent family is displayed “INPADOC” under the tab “Patent Family”, not all the priorities that are listed in PatSnap patent family data are taken into account.
When using PatSnap, we would recommend using the PatSnap Family, as it will cover more jurisdictions, and uses many cleansing techniques including normalization and data correction to ensure that as many documents are returned as possible.
PatSnap Family
All patent documents are linked (directly or indirectly) via a priority document belonging to one patent family.
The extended families allow for additional connectors to link other than strictly priority date. These include: domestic application numbers, countries that have not ratified the Paris Convention, or if the application was filed too late to claim priority.
Since patents have to be applied for at a national rather than an international level, it means that a single invention is often associated with numerous identical patents around the world.
For this reason, the idea of a patent family was introduced so that patent analysts can rapidly identify patents that relate to a single invention around the world. This also prevents distortion within the analysis.
If for example, you want to monitor and compare innovation rates of companies in terms of how many single inventions they have patented, then counting patent families removes the bias of multiple worldwide patents describing the same invention. The INPADOC family grouping system is the world's most popular method for doing this, however, this system is not without its drawbacks. This is why PatSnap introduced its own Extended Patent Family methodology.
How is an Extended patent family built?
An extended patent family retrieves all the documents directly or indirectly linked to one specific priority document. They are built using a combination of the priority numbers and application numbers of the patents.
The patents are all linked by having at least one common priority belonging to the same patent family.
As a general rule, this includes national application numbers, international application numbers, and domestic identifiers (e.g. divisional applications, continuations, etc.). This also allows for additional connecting factors to be taken into account other than just the priority date, for example, patents with domestic application numbers.
How are these families related?
|
Simple Family |
So, the smallest possible version of a family will be a simple family. Remember, this is typically made of records that claim the same priorities. |
|
INPADOC Family |
If we link this group of patents with any other patents that claim priority from any of the same documents, we end up with an INPADOC Extended Family. |
|
PatSnap Family |
PatSnap may also find additional (or occasionally less) members of a patent family during our data normalization and linking process, outside of what INPADOC has defined. We call this PatSnap Families. These additional members will be related to any or all of the simple families. |
INPADOC Extended Family vs PatSnap Family
What is the problem with INPADOC families?
We provide the INPADOC extended patent family grouping data within PatSnap, but we are aware that the INPADOC system has drawbacks. For example, not all of the patent numbers (i.e. priority number, application number) are normalized, which leads to some patents missing from families and being represented as individual patents with no family.
Why are our Extended families better?
We follow the same family rules as INPADOC, however, we provide a more powerful normalization of patent numbers, so that patents can be grouped into families correctly.
For example, if the priority number format from the New Zealand patent office adds a couple of zeroes in the middle of the number (NZ00123), but the Japanese patent office does not (JP123), we remove the zeroes so that the priority numbers match and the patents can be grouped.
What Are The Different Types Of Patent Family Members?
Why do some patents in a family claim different priorities? Well, that's down to their contents.
- Are they talking about the same invention and protecting the same things?
- Are they protecting the same invention but claiming (and therefore protecting) the same aspects using different wording?
- Are they altering their original invention completely?
- Can the invention actually be seen as two or more distinct inventions?
Given below is an explanation of each of these things. After each area, a very basic example is given to illustrate what those members might look like compared to the original invention.
Remember, these terms are largely localized to the USPTO. Other jurisdictions may have similar concepts but those will not be defined here.
Continuations
When someone files a patent, naturally the desired outcome is to obtain as strong a protection for an invention as possible. One of the ways to increase the protection on an idea (another way to say this is to "increase the scope" of protection) is to file a continuation. This is a patent application that continues the examination of the application. Whilst more expensive, it is a route many applicants take in order to protect their ideas.
Whilst the original patent issues, one can argue for a different definition on what is being protected. Most often this will take the form of different or reworded claims on the second invention. It's a way to take one application and turn it into another or two more documents.
There are many clear reasons to file a continuation:
- Whilst your first patent should always be as "strong" as possible, it might be wise to approach the invention from several descriptive angles to reduce the likelihood that another applicant can describe the same invention in a way that navigates around and therefore doesn't infringe.
- If you have multiple sets of claims, then it's harder for competition to understand exactly what the limit of your invention is. If you keep filing continuation after continuation, the definition of what you have invented is largely ambiguous and will prevent competitors from being able to define their own patents. It's a bit like when you're having an argument; it's tough for someone to rebut what you've said until you stop talking!
- Bigger patent families tend to be more valuable. If your R&D team has created one invention, then would you rather have one patent around that, or six? Increasing patent output is a performance indicator for many organizations and the more valuable IP you can extract from a single invention, the better.
Example:
Original Invention: Chair with four legs, a seat, two armrests and a backrest.
Continuation: Chair with four vertical supports, seat, horizontal cushion and a spine support mechanism.
Continuations-in-part
It's not always enough to talk about the same invention in different ways. Occasionally (or often, depending on the applicant), you'll see variations on an invention. And a lot of the time, the variation is close enough in scope to an existing invention, that you can file a continuation-in-part. For example, if your original invention constitutes a chair, with four legs, two armrests, and a seat. That is everything described in the description area of the document. A continuation-in-part would add subject matter to that description - in this example that might be a cup-holder built into the armrest of the chair.
Example:
Original Invention: Chair with four legs, a seat, two armrests and a backrest.
Continuation-in-part: Chair with four legs, a seat, two armrests, a backrest and cup-holder.
Divisionals
In some circumstances, it may turn out that an invention that's been filed actually constitutes two separate and distinct inventions. Let's say in our example, our chair had an added technology of a speaker embedded into the headrest. The patent examiner may look at this invention and see it really as two distinct inventions - a chair and a speaker. At this point, the patent examiner would recommend to the applicant that they file two separate documents (both of which would claim priority from the original) that each describe a single and distinct invention.
Example:
Original Invention: Chair with four legs, a seat, two armrests, backrest, amplifier, sub-woofer and 2 main speakers.
Divisional 1: Chair with four legs, a seat, two armrests and a backrest.
Divisional 2: Amplifier, sub-woofer and two main speakers.
Accessing List, Geography & Tree map
List

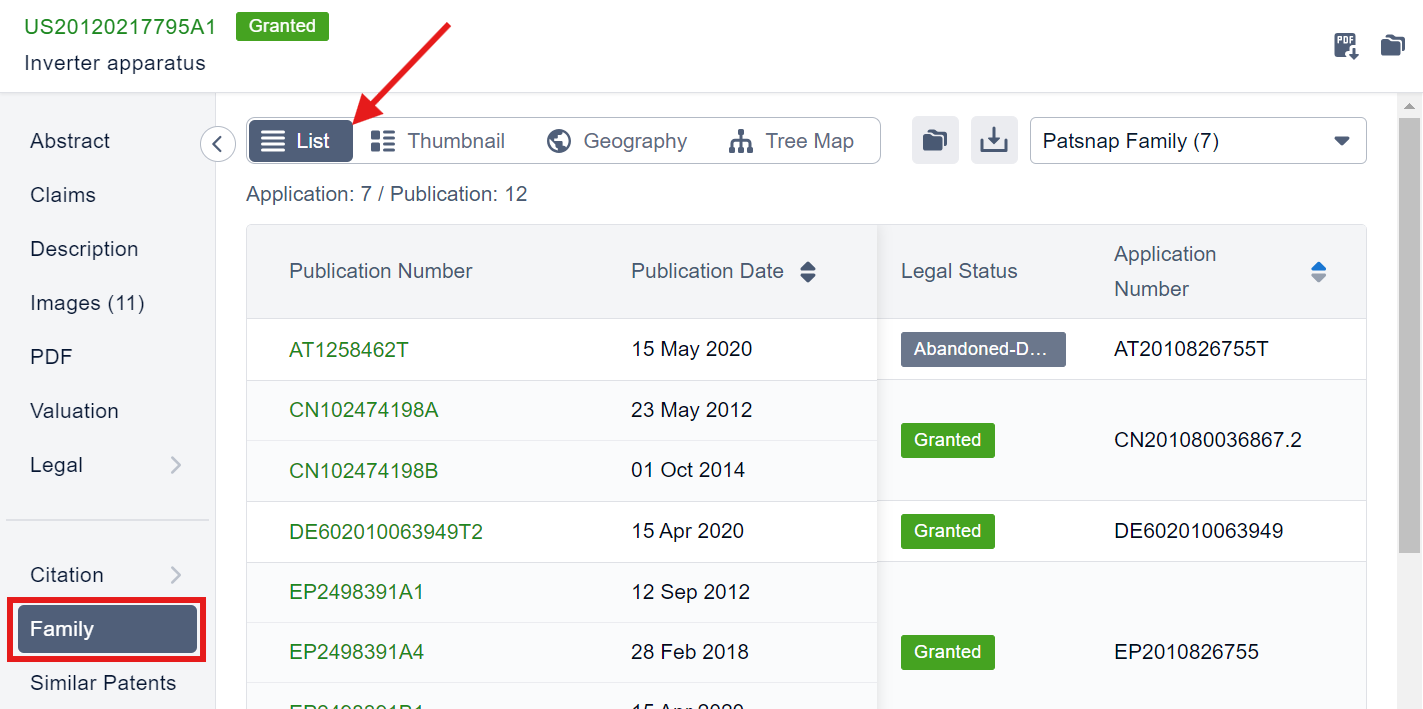

In order to access list, click the "Family" tab:

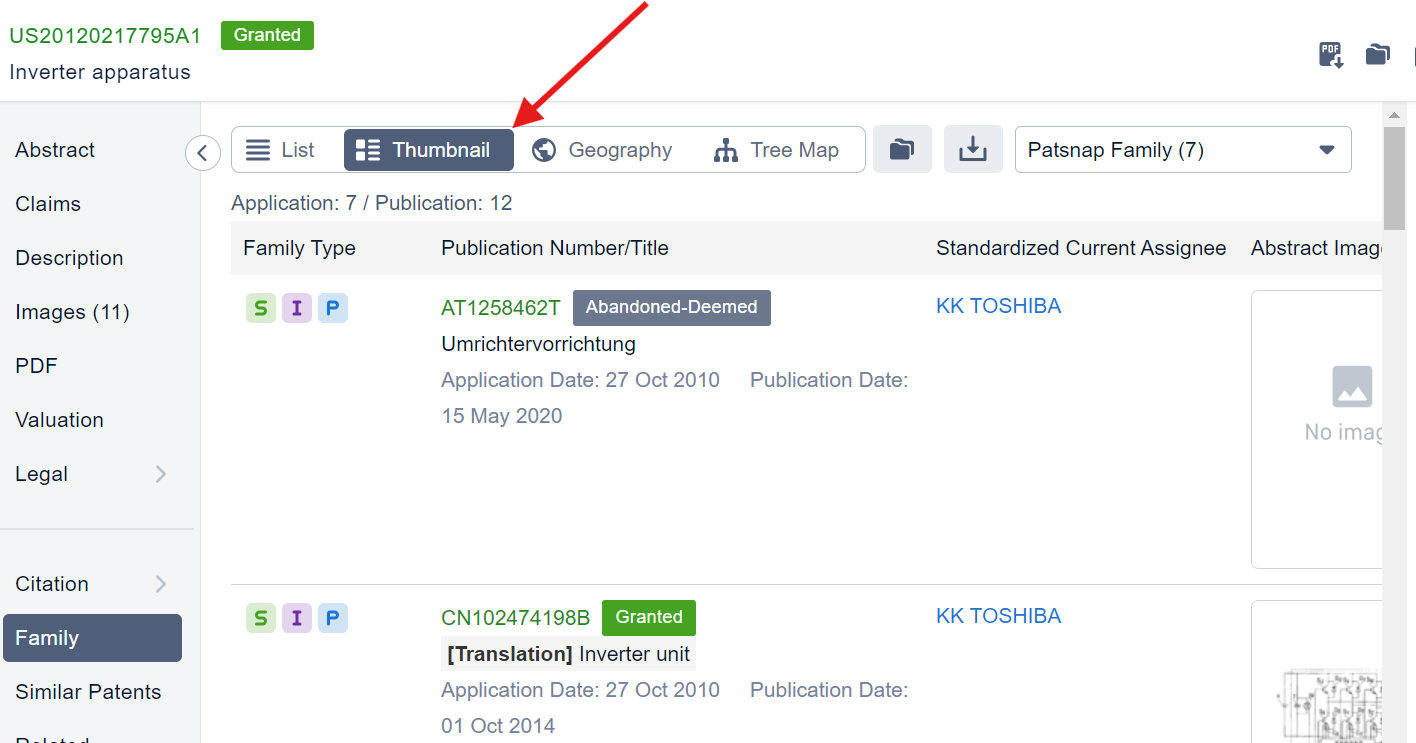

The List page looks like this:
Here, you will see a list of all the patent documents for each type of family. This also shows you which other types of family each patent appears in, some bibliographic data about them and provides an abstract image. There is also an option to save these patents to a Workspace and download them.
Geography

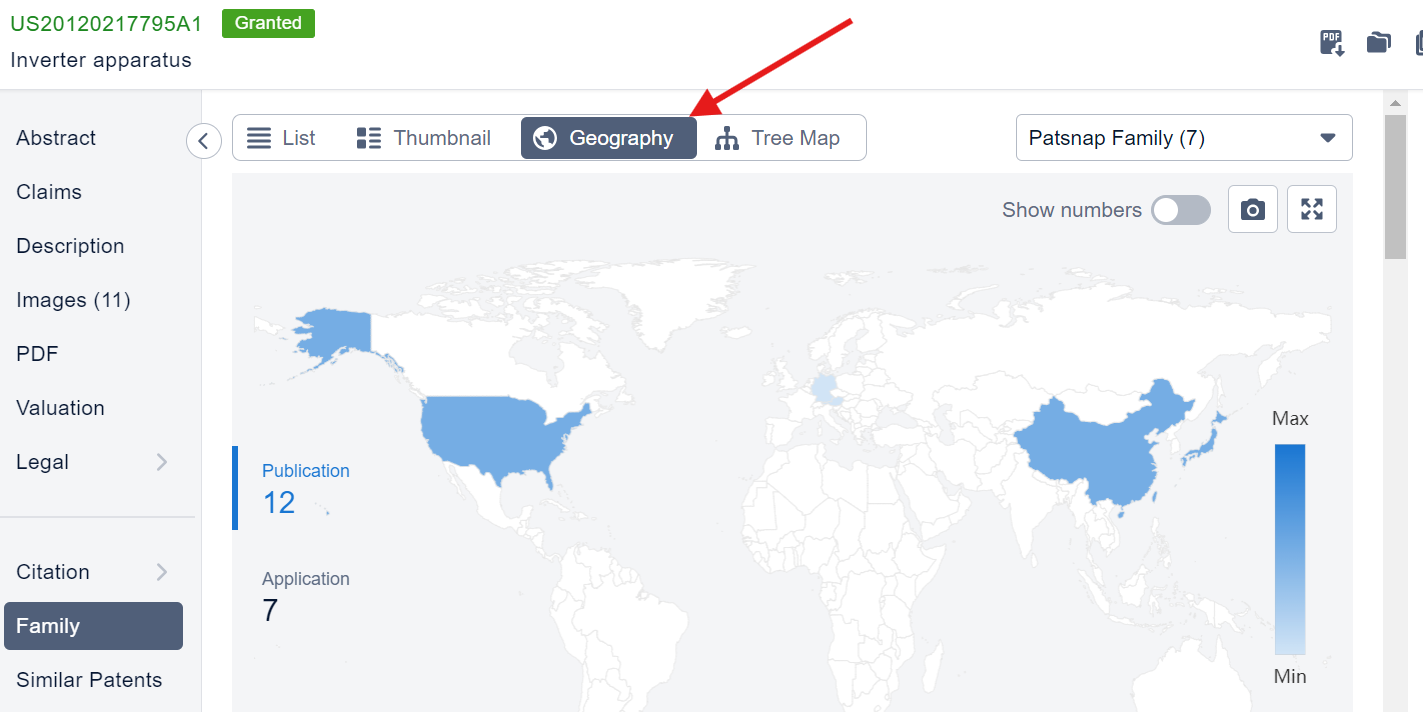

The second option which you can choose is "Geography", which looks like this:
Here, you will get to see where different members of the patent family were filed in the world (patents filed to the EPO or WIPO are separate since these are not national patent offices). You can also choose which patent family is displayed (simple/extended/INPADOC) as well as being able to view the patents in the different families. For these patents, you can view priority data, assignee names, inventor names, IPCs, their abstract, as well as information about their legal status. You can also download these patents individually as PDFs as well as being able to add the whole list of them to a workspace or export them.
Tree Map

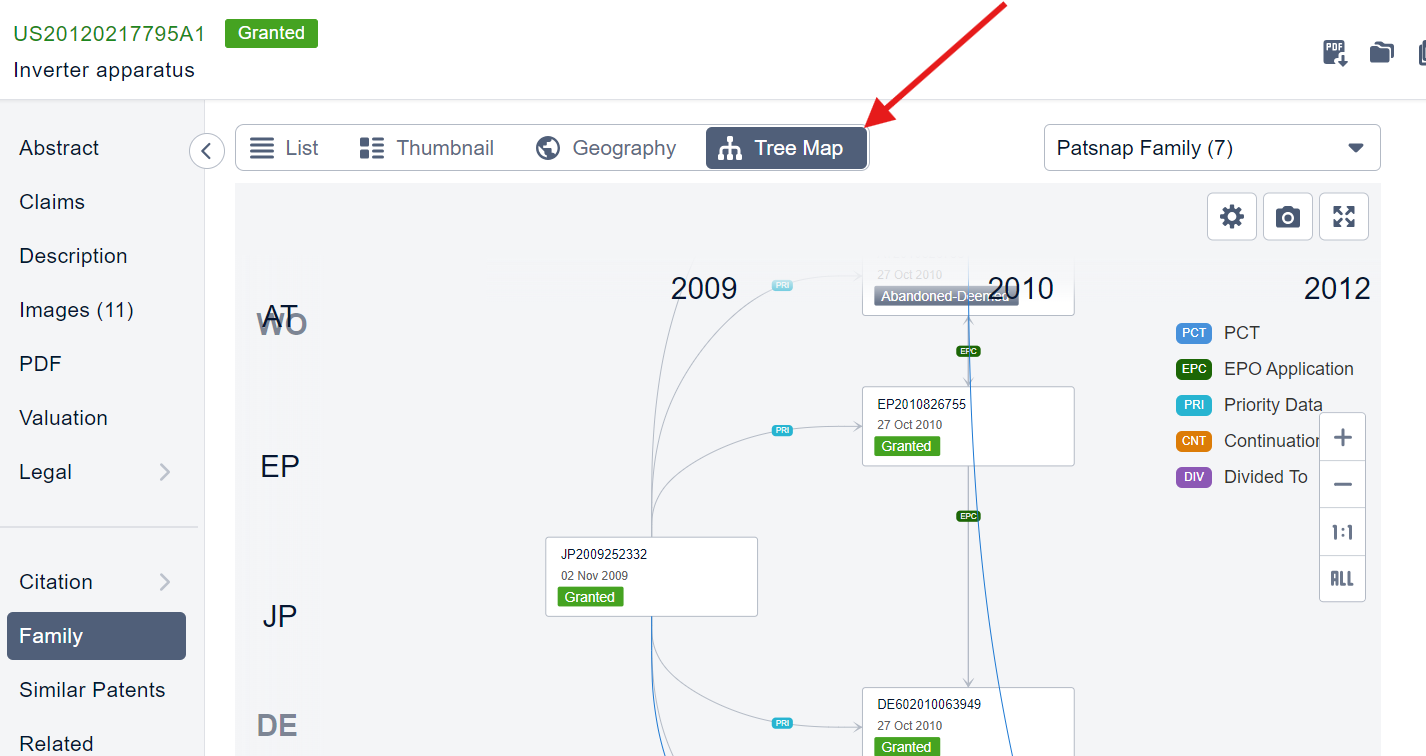

The third option which you can choose is "Tree Map", which looks like this:
Here, you will see a tree that shows the development over time for the different patent families where the lines and arrows show the different priority links within the family. You can also see the different jurisdictions for the patents, which will enable you to get an idea if this particular company always files in a particular country first. As well as this, you can see the years for the patents which will allow you to see if there were specific years where many new family members were filed.
There are also various refinements and setting alterations you can make. You can refine by authority, application year and legal status. You can view the tree map in full screen as well as being able to zoom in and out of the map. You can also save the image as well as change which fields are displayed for each of the patents (application number is automatically set as a displayed field). Finally, you can select which types of relationships (PCT, EPC, Priority Data, Continuation, Divided To) are displayed between the different family members.
What do the ticks mean on the patent family page?
Underneath the world map, you will see a number of tick boxes adjacent to the patents. Each tick box relates the priority date that the patent we are looking at is related to. The priority data section will give you that patent's priority number and date. In case of multiple priority numbers, you can scroll horizontally on the page.
An additional tick represents a divisional or continuation update to the patent and refers to what priority date this update is referring to. This is true for every other tick going forward.
If each patent has a matching tick in its box, then it is part of the same family as it is referring to the same priority date and is thus protecting the same invention. These are what we call simple families, if more than one patent has three ticks in the same box then again it is still part of the simple family.
However, if there is a gap in between two tick boxes then this patent was not filed as a continuation or divisional update to that specific priority date with a blank. This patent is no longer part of the simple family and is part of the INPADOC or PatSnap family. This is because the patent has the same common scope but lacks the exact same common priorities.
